Automotive Parts Spray Painting Solutions
Three proven coating processes — Multi-Axis Robotic Painting, DISC Electrostatic Rotary Atomization, and Universal Robotic Painting — delivering precision, efficiency, and scalability for diverse automotive parts across all substrates and geometries.
Solution Overview
Addressing the diverse coating requirements of automotive parts across multiple varieties and substrates with three proven processes.
Automotive parts present unique coating challenges — from complex geometries like bumpers and grilles to high-volume standardized parts like wheels and leaf springs. Each requires a different approach to achieve optimal finish quality, transfer efficiency, and production throughput. Geetech offers three proven process technologies that together cover the full spectrum of automotive part painting needs:
Multi-Axis Robotic Painting
Exceptional flexibility for complex geometries like bumpers and grilles. Precise trajectory control with 5, 6, or 8-axis configurations, supporting mixed-model production with rapid changeovers.
DISC Electrostatic Rotary Atomization
Engineered for high-volume regular-shaped parts such as wheels and leaf springs. Achieves over 90% transfer efficiency with high-speed rotating bell cup technology for maximum cost-effectiveness.
Universal Robotic Painting
Accommodates waterborne, UV, powder, and other coating types. Streamlines primer, basecoat, and clearcoat applications with strong scalability for future smart manufacturing upgrades.
Equipment & Production Line Showcase
Visual overview of Geetech's automotive parts painting equipment and production lines.

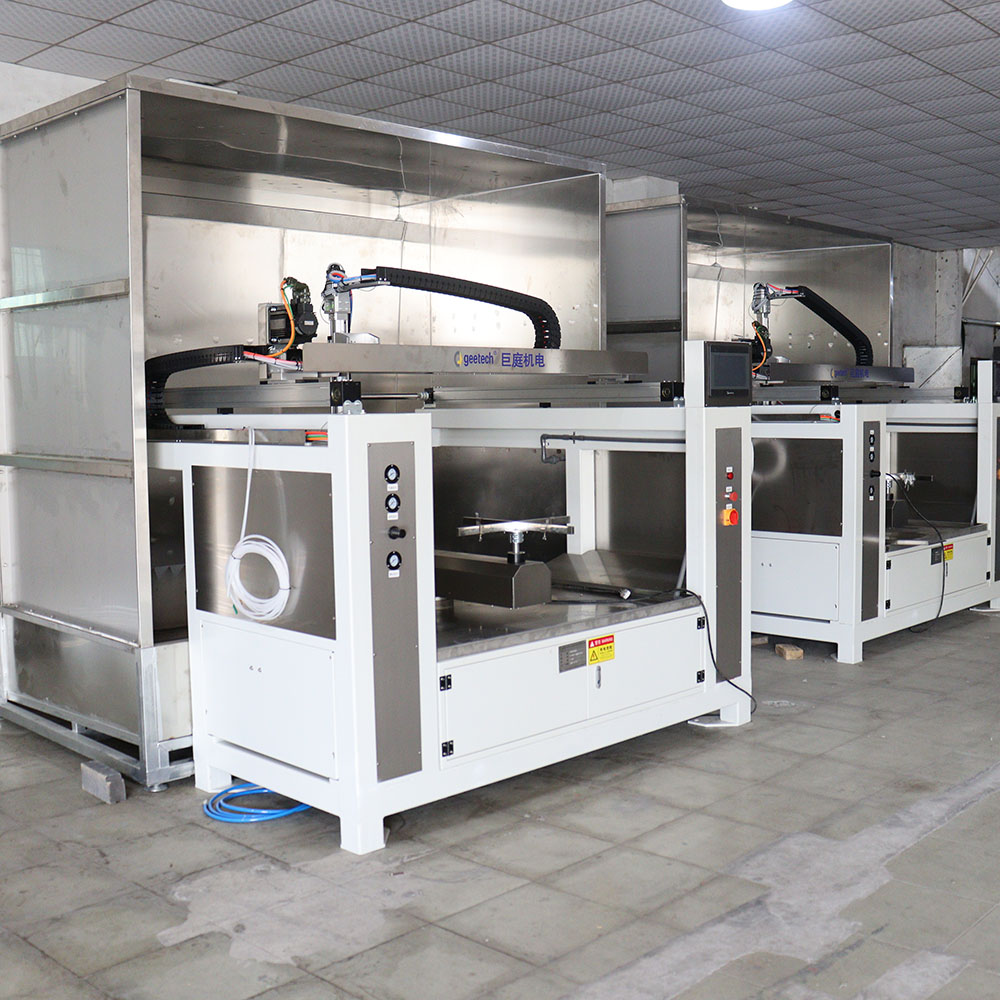

Multi-Axis Robotic Painting

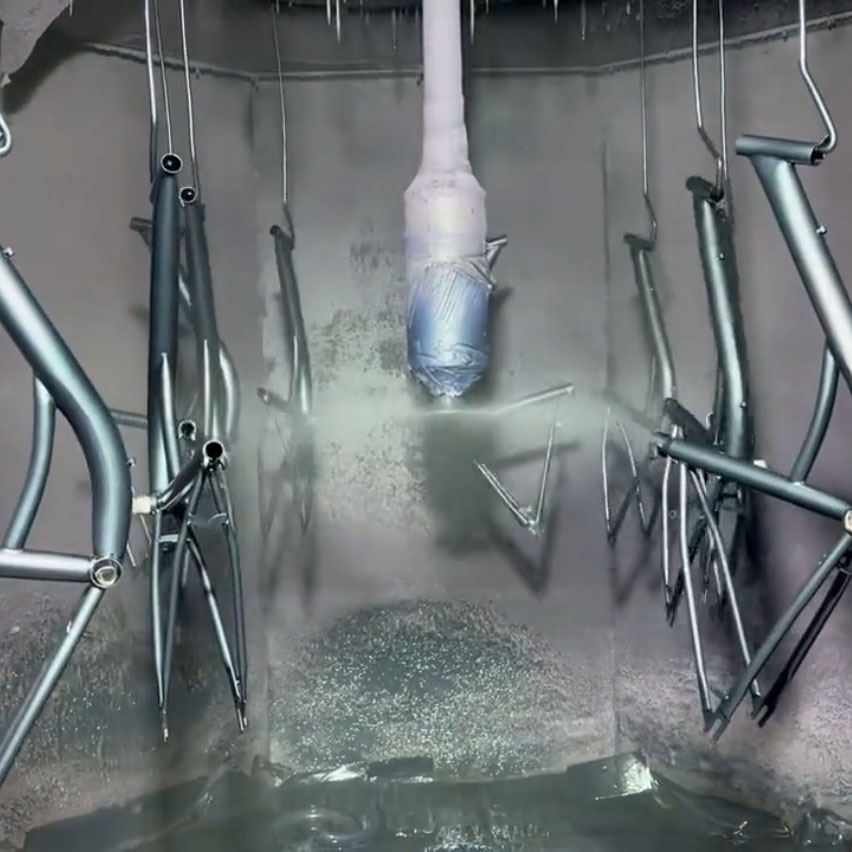

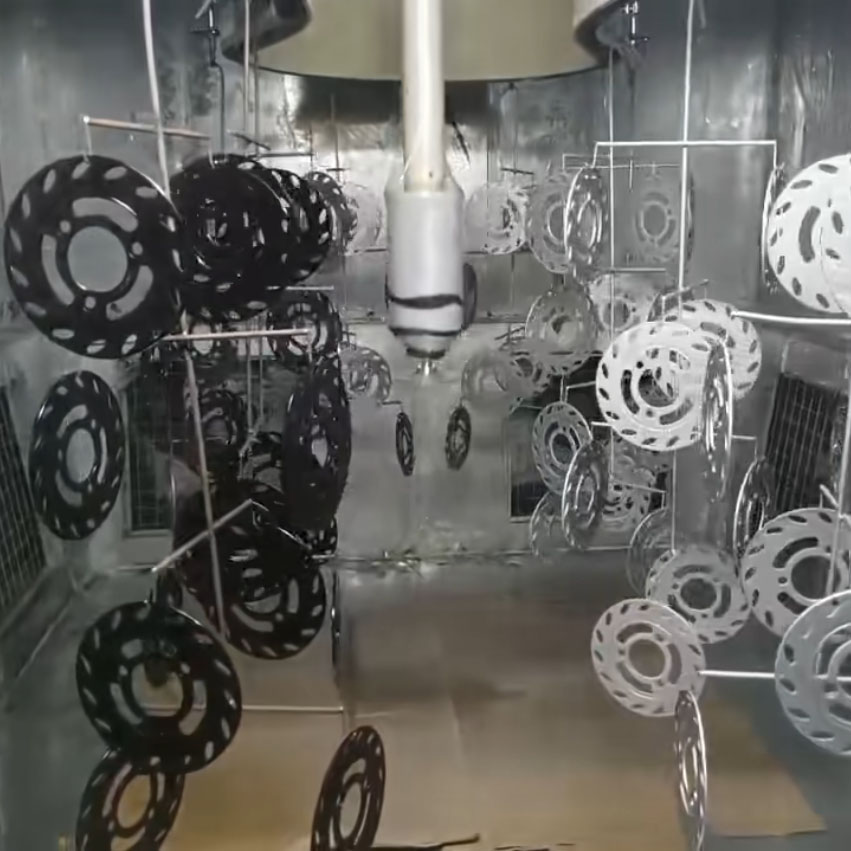

DISC Electrostatic Rotary Painting
Universal Robotic Painting
Option 1: 5 / 6 / 8-Axis Robotic Painting
Multi-joint robots delivering precise trajectory control for complex automotive part geometries.
Features
Utilizes multi-joint robots for precise trajectory control. The 5-axis offers high rigidity; the 6-axis provides flexible orientation; the 8-axis (with ground rail/turntable) eliminates blind spots and covers deep cavities.
Advantages
- Extremely high flexibility with programmable spray patterns
- Superior accuracy with sub-millimeter positioning precision
- Rapid changeovers supporting mixed-model production
- High automation levels with minimal operator intervention
Suitable Workpieces
- 5-Axis: Metal brackets, flat interior trims, simple sheet metal parts
- 6-Axis: Bumpers, doors, wheels, brake calipers, control arms
- 8-Axis: Intake grilles, complex lamp housings, decorative covers, irregular structural parts
Option 2: DISC Electrostatic Rotary Painting
High-speed rotating bell cup technology for maximum transfer efficiency on high-volume parts.
Features
Employs a high-speed rotating bell cup to atomize paint, combined with chain conveyor rotation for 360° wrap-around adhesion. The electrostatic charge ensures paint particles are attracted uniformly to grounded workpieces.
Advantages
- High material utilization — over 90% transfer efficiency
- Low operating costs with minimal paint waste
- Fast painting speed ideal for mass production
- Consistent film thickness across all surfaces
Suitable Workpieces
- Wheels, leaf springs, mufflers
- Various suspended hardware brackets, shock absorbers
- Shapes with regular geometry suitable for hanging, such as filter housings and motor casings
Option 3: Universal Robotic Painting
One system handles the entire painting process with unmatched compatibility across coating types and workpieces.
Features
Uses industrial robots as carriers, flexibly integrating bells, spray guns, or DISC systems. Compatible with waterborne, UV, powder, and other coating types, enabling a single platform to handle diverse painting requirements.
Advantages
- Strong compatibility — one system handles primer, basecoat, and clearcoat
- Adaptable to future process changes without major reconfiguration
- Supports multiple coating technologies on a single robotic platform
- Seamless integration with smart manufacturing and Industry 4.0 systems
Suitable Workpieces
- Full Coverage: From tiny emblems and sensors to large bumpers
- Multi-Material: Plastics (PP/ABS), metals (steel/aluminum), and composites
- Specialty Parts: High-temperature resistant calipers, soft-touch interior components
Key Advantage: All three options are available as turnkey solutions, including pre-treatment, painting, curing, and quality inspection — fully automated and customizable to your specific automotive part production requirements.
Production Line Configurations
Modular and scalable line configurations to match your production capacity needs.
| Configuration | Process | Capacity | Best For |
|---|---|---|---|
| Compact Cell | Single Robot | 100–500 pcs/hr | Small batch, high-mix, aftermarket parts |
| Standard Line | Multi-Axis Robotic | 500–1,500 pcs/hr | Bumpers, doors, interior trims |
| High-Volume Line | DISC Electrostatic | 1,500–5,000 pcs/hr | Wheels, leaf springs, brackets |
| Universal Line | Universal Robotic | Custom | Mixed parts, multi-coating, future-proof |
All line configurations are fully customizable. We design each system based on your specific part dimensions, coating requirements, and production targets.
Quality Assurance & After-Sales Support
Comprehensive support throughout your equipment lifecycle.
Quality Certifications
ISO 9001 certified quality management system with CE compliant equipment ensuring consistent production quality across every batch.
Installation & Commissioning
Professional on-site installation and commissioning by experienced engineers, with full operator training at your facility.
24/7 Technical Support
Round-the-clock remote and on-site technical support with rapid response times for critical production issues.
Spare Parts Supply
Comprehensive spare parts inventory with express worldwide shipping to minimize production downtime.
