Mini Spray Coating Line Solution
Geetech Compact Automatic Circular Spray Painting Line — engineered for small-to-medium batch production with daily output of 1,000–5,000 pieces, delivering a flexible, efficient, and cost-effective automated coating solution.
Solution Overview
A compact yet powerful coating line designed for cost-conscious manufacturers.
Geetech introduces its compact automatic circular spray painting line solution, specifically engineered for small-to-medium batch production. It serves as an ideal choice for cost-conscious clients with daily output targets ranging from 1,000 to 5,000 pieces, delivering a flexible and efficient automated coating solution. In this configuration, the flat tunnel curing oven is strategically positioned downstream of the circular ground-rail spraying process.
Core Configuration & Features
Key components engineered for performance, reliability, and ease of use.
Flat Tunnel Curing Oven
Following the completion of automatic spraying on the circular ground rail, workpieces are transferred via the conveyor system into the flat tunnel oven. This ensures uniform curing and excellent coating leveling without affecting the dimensional tolerances of the parts.
Capacity & Design
Tailored for daily outputs of 1,000–5,000 pieces, the space-saving circular ground-rail design helps reduce capital investment while significantly boosting operational efficiency.
Smart Control System
Equipped with a fully integrated intelligent control system, the line allows flexible customization of process parameters. It features user-friendly operation and easy maintenance, greatly enhancing automation levels.

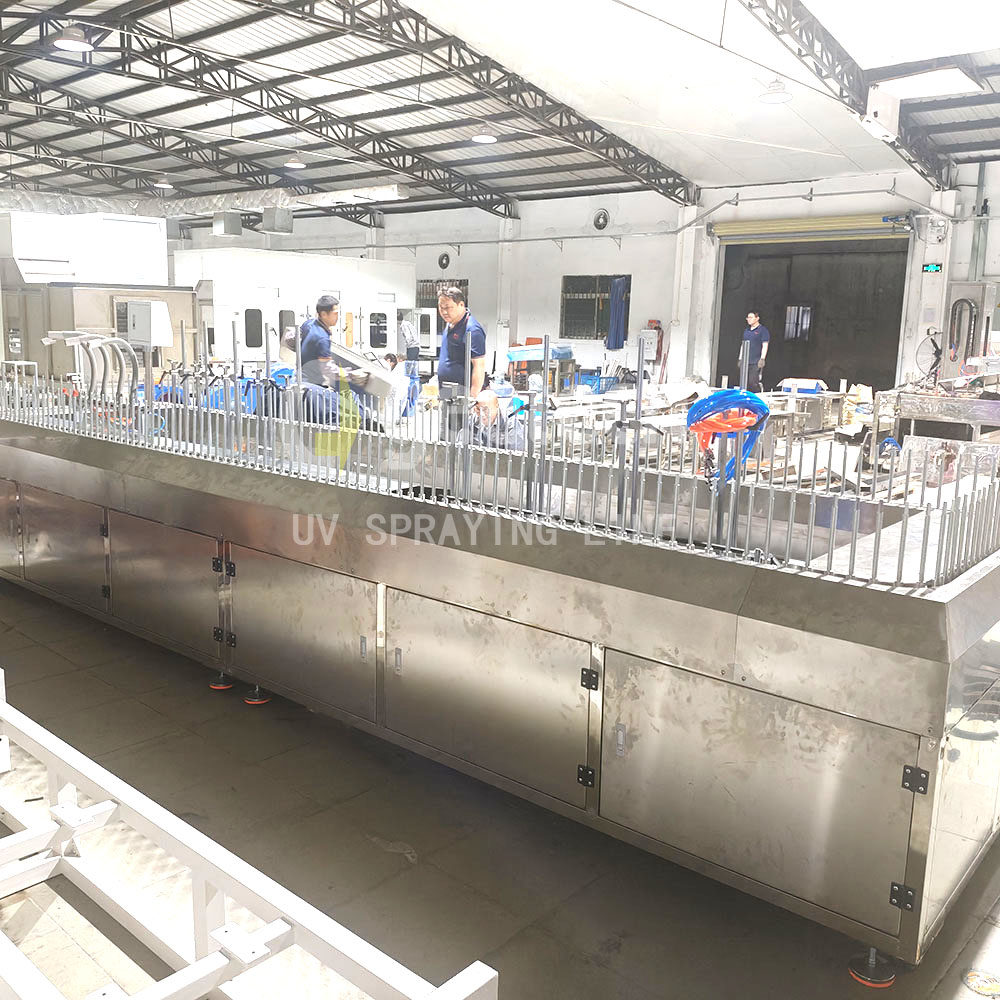

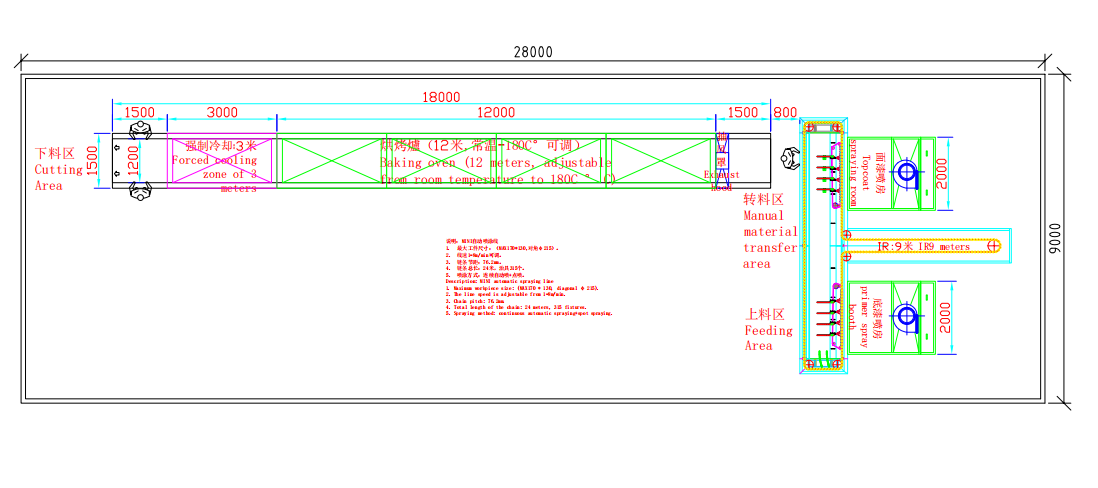

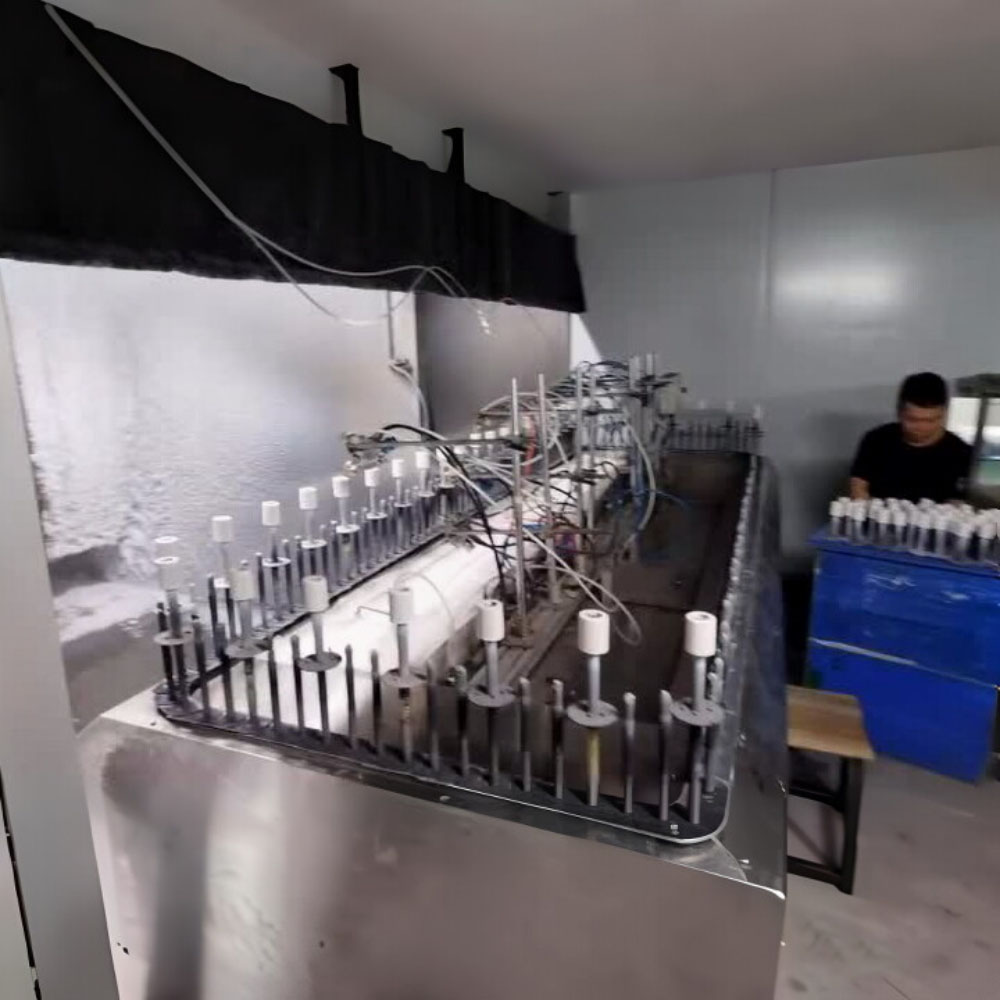

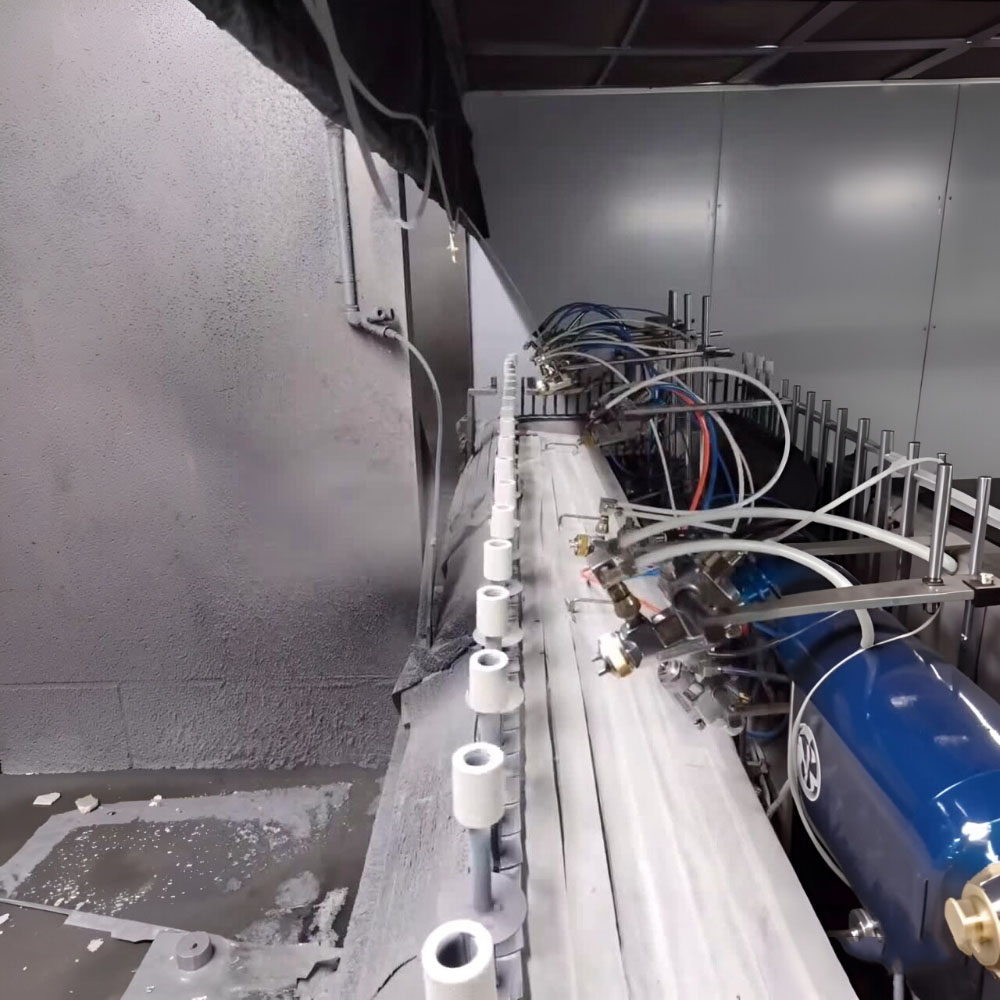

Line Configuration Showcase
Visual overview of Geetech's compact circular spray painting line system.
Typical Applications
Suitable for various substrates across multiple industries.
Cosmetic Packaging
Ideal for oleophobic coating and decorative painting of small components such as cushion compact inner covers and various glass bottles.
3C Electronics
Perfect for precision surface finishing on monitor housings, smart speakers, and other electronic devices.
Automotive Interior Parts
Meets the high-precision and high-consistency requirements for batch spraying of automotive interior components.
Production Line Specifications
Technical parameters of the compact circular spray painting line.
| Parameter | Specification |
|---|---|
| Production Capacity | 1,000–5,000 pcs/day |
| Conveyor Type | Circular Ground-Rail System |
| Curing System | Flat Tunnel Oven (Convection/IR) |
| Spraying Stations | 2–4 Automatic Spray Guns (Configurable) |
| Control System | PLC Fully Integrated Smart Control |
| Footprint | Compact Space-Saving Layout (Customizable) |
Procurement Advice
Guidance for selecting the right configuration for your production needs.
Customization
Equipment dimensions and specific configurations can be tailored to meet your actual facility layout and process requirements.
Consultation
We recommend contacting our technical engineers directly to discuss your specific production needs, ensuring you receive a targeted process solution along with detailed specifications and a quotation.
Key Advantage: This compact line delivers big-line performance in a small footprint — perfect for manufacturers looking to automate without the capital expenditure of a full-scale production line. Ideal for entry-level automation, R&D pilot lines, and niche high-mix production environments.
Quality Assurance & After-Sales Support
Comprehensive support throughout your equipment lifecycle.
Quality Certifications
ISO 9001 certified quality management system ensuring consistent production quality and CE certified equipment with comprehensive safety systems.
Installation & Commissioning
Professional on-site installation and commissioning by experienced engineers, with full operator training included.
24/7 Technical Support
Round-the-clock remote and on-site technical support with rapid response times for critical production issues.
Spare Parts & Training
Comprehensive spare parts inventory with express worldwide shipping, plus customized training programs for your team.
