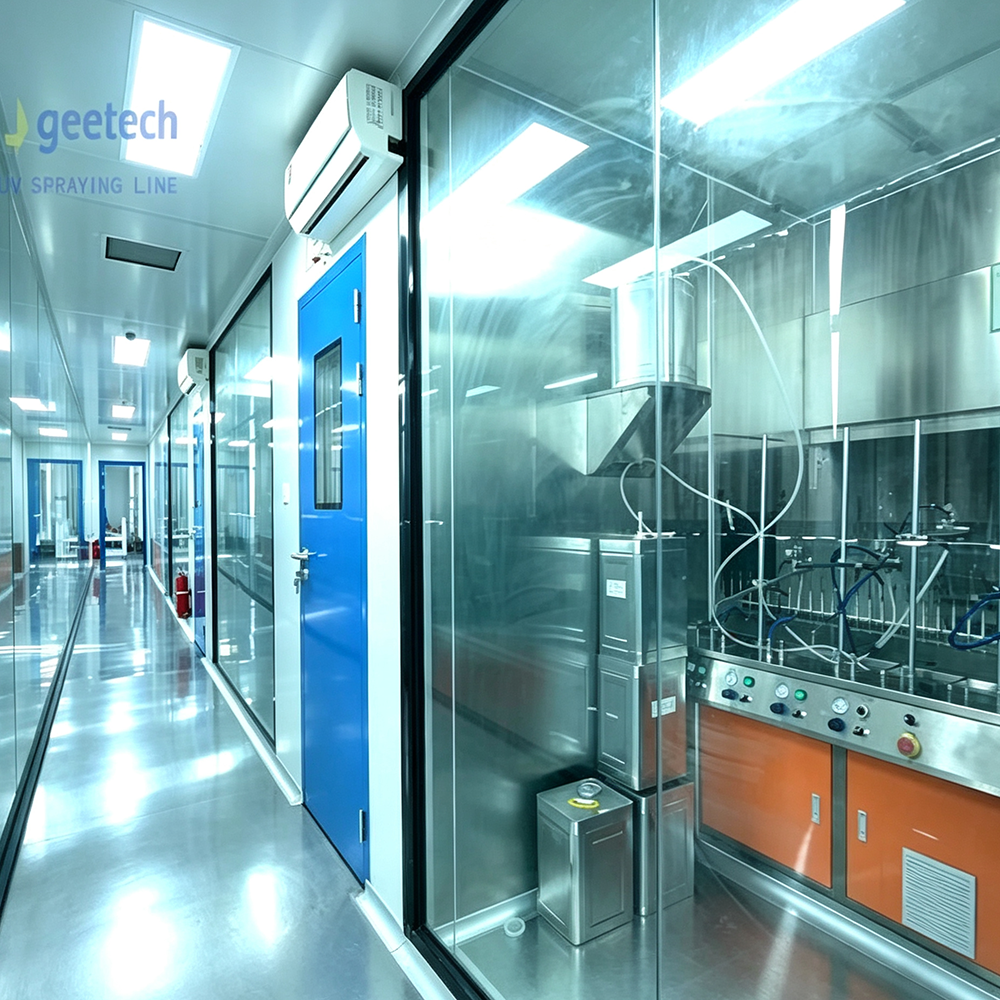

Automatic UV Spraying Line
High-efficiency automated UV coating line for plastic, metal, glass, and wood products. Instant UV curing, uniform coating, eco-friendly, PLC recipe control, CE certified. Boost your production with Geetech's turnkey UV solutions.
Solution Overview
Geetech: Precision UV Spraying & Instant Curing Automation
Designed for high-volume surface finishing, Geetech UV spraying lines integrate advanced reciprocating or robotic spray guns with high-intensity UV curing ovens. From standalone spraying stations to fully automated turnkey lines, we deliver high-transfer-efficiency, low-energy UV coating solutions for cosmetic packaging, 3C electronics, automotive parts, and furniture hardware.
Instant UV Curing
UV LED or mercury lamp curing in seconds. Drastically reduces production cycle time and eliminates dust contamination during drying.
Eco-Friendly & Energy Saving
UV coatings contain no solvents, zero VOC emissions. Closed-loop recovery and efficient UV systems cut energy use by up to 40%.
Versatile Application
Handles plastic, metal, glass, and wood substrates. One line supports primer, color coat, and clear UV topcoat for diverse industries.
Pain Points & Our Solutions
Match your production challenge to the right UV configuration — no over-engineering, no missed quality.
Common Pain Points
- Slow drying, dust settling on wet paint
- Uneven coating thickness, orange peel effect
- High VOC emissions, environmental compliance pressure
- High energy consumption for thermal curing
- Frequent color change, long cleaning downtime
- Hard to maintain consistent quality at high speed
Geetech Solutions
- Instant UV curing (2-5 sec), no dust, no waiting
- Precision spray guns + PLC control, film tolerance ±2μm
- UV 100% solid coatings, zero VOC, compliant with EPA/CE
- UV LED option, 50% less power than traditional ovens
- Quick-color-change system, cleaning ≤10 min
- High-speed conveyor + vision inspection, stable at 3600 pcs/h
Process Route & Line Layout
Standard turnkey UV spray line — every station engineered for maximum throughput and finish quality.
Loading
Automatic feeding / manual loading jig
Dust Removal
Electrostatic or air shower dedusting
Spraying
Reciprocating / Robot UV coating
UV Curing
UV LED / Mercury oven, instant dry
Unloading
Auto discharge / cooling conveyor
Line Layout & Gallery
Conveyor: chain / spindle / belt. Spray booth: stainless steel, negative pressure. Recovery: paint recycling system. Download layout PDF / DWG →
Core Specifications
Structured parameters for quick comparison and RFQ. Values are standard ranges — final spec confirmed against your workpiece.
| Parameter | Details |
|---|---|
| Applicable workpieces | Plastic / Metal / Glass / Wood products |
| Max part size | 800mm × 600mm × 300mm (customizable) |
| Coating type | UV primer / color / clearcoat, UV adhesive |
| Spray gun | High-speed rotary / Air spray / Electrostatic |
| Robot / Axis | 3-axis / 5-axis / 6-axis robot optional |
| Control system | PLC + Touchscreen, recipe memory |
| Conveyor speed | 0–15 m/min (adjustable) |
| Output | 500 – 3,600 pcs/h (by configuration) |
| UV Curing | UV LED (365/395nm) / Mercury lamp |
| Material | Stainless steel 304, anti-explosion design |
| Power / Air | 380V / 3P / 50Hz (custom) · 0.6–0.8 MPa |
| Certification | CE / ISO available |
| Lead time | 30–60 days |
Last verified: 2026-08. For project-specific parameters, contact engineering — see RFQ form.
Compliance & Export Readiness
For procurement, ESG and plant managers — documentation and standards support included.
- CE certification — full CE compliance for European market
- ISO 9001 quality management system
- Export documents — HS code 8424.89 / 8424.30 (spraying machinery)
- Coating compliance — UV coatings meet RoHS / REACH standards
- Emission control — zero VOC, closed-loop recovery, eco-friendly
- Documentation pack — operation manual, electrical diagram, spare parts list, layout drawing
Investment & Operating Cost
Three configuration tiers — choose by capacity and automation level. Figures are reference ranges; final quote against RFQ.
| Tier | Configuration | Capacity | Reference Investment |
|---|---|---|---|
| Essential | Single UV spray booth + curing | 200–800 pcs/h | On request |
| Standard | Auto spray + UV conveyor line | 800–2,000 pcs/h | On request |
| Automatic | Robotic UV turnkey line | 2,000–3,600 pcs/h | On request |
- Payback via labor reduction + coating savings; typical ROI case available on request
- Paint waste reduced 30%+ with closed-loop recovery
- Payment milestones: design → manufacturing → installation → commissioning
- Lead time 30–60 days; on-site installation & operator training included
Industry Cases
Standardized case cards — pain point → configuration → result. (Customer names anonymized where required.)
UV Coating Line for Lipstick Tubes
Pain: High gloss required, dust on wet paint.
Config: 5-axis spray + UV LED cure.
Result: Mirror-like finish, instant cure, 1,500 pcs/h.
Mobile Phone Case UV Painting Line
Pain: Color consistency, high volume.
Config: Robot spraying + UV mercury oven.
Result: ΔE<1, stable 3,000 pcs/h, zero VOC.
Car Trim UV Coating Line
Pain: Scratch resistance, fast turnaround.
Config: Reciprocating spray + UV conveyor.
Result: 2H hardness, 2,000 pcs/h, 40% energy saving.
Delivery & Service Guarantee
Turnkey support across the full equipment lifecycle.
Requirement
Drawing review & technical survey
3D Proposal
Layout & line simulation
Manufacturing
Build & factory test
Installation
On-site install & commissioning
Training
Operator & maintenance training
Warranty
Remote + on-site support, spare parts supply
24/7 Support
Remote diagnosis & rapid on-site response.
Spare Parts
Express worldwide shipping to minimize downtime.
Integration
MES / ERP interface support on request.
FAQ
Answers to questions that commonly block an RFQ — so you can inquire with confidence.
What types of coatings can be used in the UV line?
UV-curable primers, color coats, clearcoats, and adhesives. Both 100% solid UV and some water-based UV hybrid materials are supported.
What is the curing time?
Typically 2–5 seconds under UV LED or mercury lamps, depending on coating thickness and lamp intensity.
Can the line handle both small and large parts?
Yes. The line is customizable for parts from 10mm to 800mm. Jigs and gun configuration are adjusted per workpiece.
Is UV coating environmentally friendly?
Yes. UV coatings are 100% solid, producing zero VOC emissions. They are compliant with RoHS and REACH regulations.
What is the energy consumption compared to thermal curing?
UV LED curing consumes about 50% less energy than traditional hot-air ovens, with no warm-up time.
Do you provide installation and training?
Yes. Turnkey service includes on-site installation, commissioning, and operator training; 24/7 remote support.
What is the HS code for export?
Typically 8424.89 or 8424.30 (spraying machinery).
