CNC 5-8 Axis Spray Painting System for Aerospace Components
Aerospace Component Coating: Meeting rigorous industry standards, the Geetech CNC 5-8 axis servo spray system is utilized for aerospace components. It manages traceable recipes and operates within clean airflow environments to prevent contamination. The system accurately coats complex geometries found in aircraft interiors and engine parts, providing essential protection against extreme temperatures and environmental wear.
Product Highlights
- 5-Axis CNC Linkage for Zero Dead-Corner Coverage Combining three linear axes with dual rotary axes to create a full 360u00B0 dynamic spray trajectory. Perfectly suited for flat panels, shallow curves, recessed structures, and lightweight 3D parts, completely eliminating the visual blind spots common in traditional fixed-gun booths.
- Superior Cost-Effectiveness with High ROI Delivering imported-level precision at a competitive price point. Leveraging Geetech's mature electromechanical supply chain and standardized production, we significantly reduce procurement costs. Experience high-end CNC spraying at exceptional value, ensuring a fast ROI and stronger market competitiveness.
- Flexible Production for Multi-Variety Spraying Supports graphical programming and mass recipe storage for one-click parameter switching. Whether handling small-batch custom orders or mixed-model production runs, the system responds instantly without complex fixture adjustments. Truly a versatile multi-tasker for diverse coating needs.
- Worry-Free Technical Support: Remote & On-Site Service Backed by Geetech's expert technical team. We prioritize efficient troubleshooting via remote video guidance. Should complex issues arise, our senior engineers are dispatched to your site promptly to resolve them, ensuring truly worry-free operation.
Contact Us
Product Description

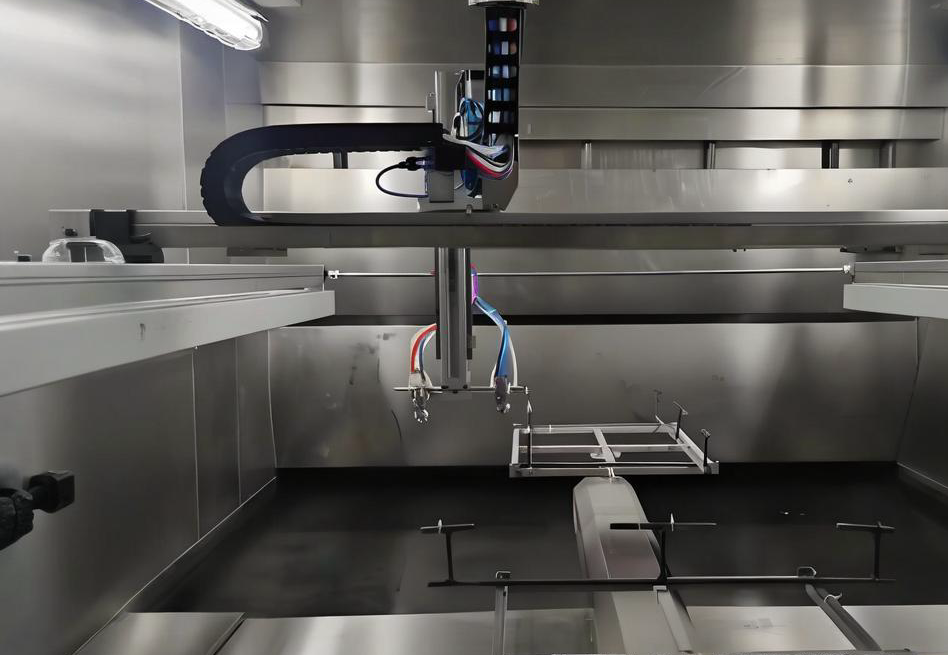

Equipped with a stainless steel dust-free positive pressure automatic spray booth, utilizing Venturi vortex water scrubbing exhaust gas treatment, ensuring a clean working environment and compliance with environmental standards.
|
Component
|
Specification
|
|---|---|
|
Reciprocator Dimensions
|
W2120 mm × D1910 mm × H2259 mm
|
|
Module Sliding Table
|
Steel enclosed dust-free linear slide, aluminum alloy frame, built-in linear guide, driven by polyurethane synchronous belt
|
|
X-Axis (Lateral)
|
Stroke: 1200 mm, INVT 1 kW Servo Control, Speed: 0–100 m/min
|
|
Y-Axis (Longitudinal)
|
Stroke: 1000 mm, INVT 1 kW Servo Control, Speed: 0–100 m/min
|
|
Z-Axis (Vertical)
|
Rack sliding table, Panasonic servo motor drive, Stroke: 400 mm
|
|
R-Axis (Gun Angle)
|
Spray gun angle adjustable 0–80°, servo motor driven
|
|
Feeding Table
|
Dual-station rotary exchange table (load/unload while spraying)
|
|
Tray Specs
|
600 mm × 600 mm, Max Load: 10 kg/tray
|
|
Booth Dimensions
|
W2500 mm × D2800 mm × H2500 mm
|
|
Booth Material
|
Bucket, side panels & roof: 201# Stainless Steel Plate (1.5 mm thickness, grade -20°C)
|
|
Exhaust Treatment
|
Venturi Vortex Water Scrubber
|
|
Exhaust System
|
YunTong 7.5 kW Belt-Driven Centrifugal Fan
|
|
Water Pump
|
TaiFeng Brand 3.75 kW Corrosion-Resistant Submerged Pump
|
