UV Curing Spray Booth to PVD Machine Integration Solution

UV Curing Spray Booth to PVD Machine Integration Solution

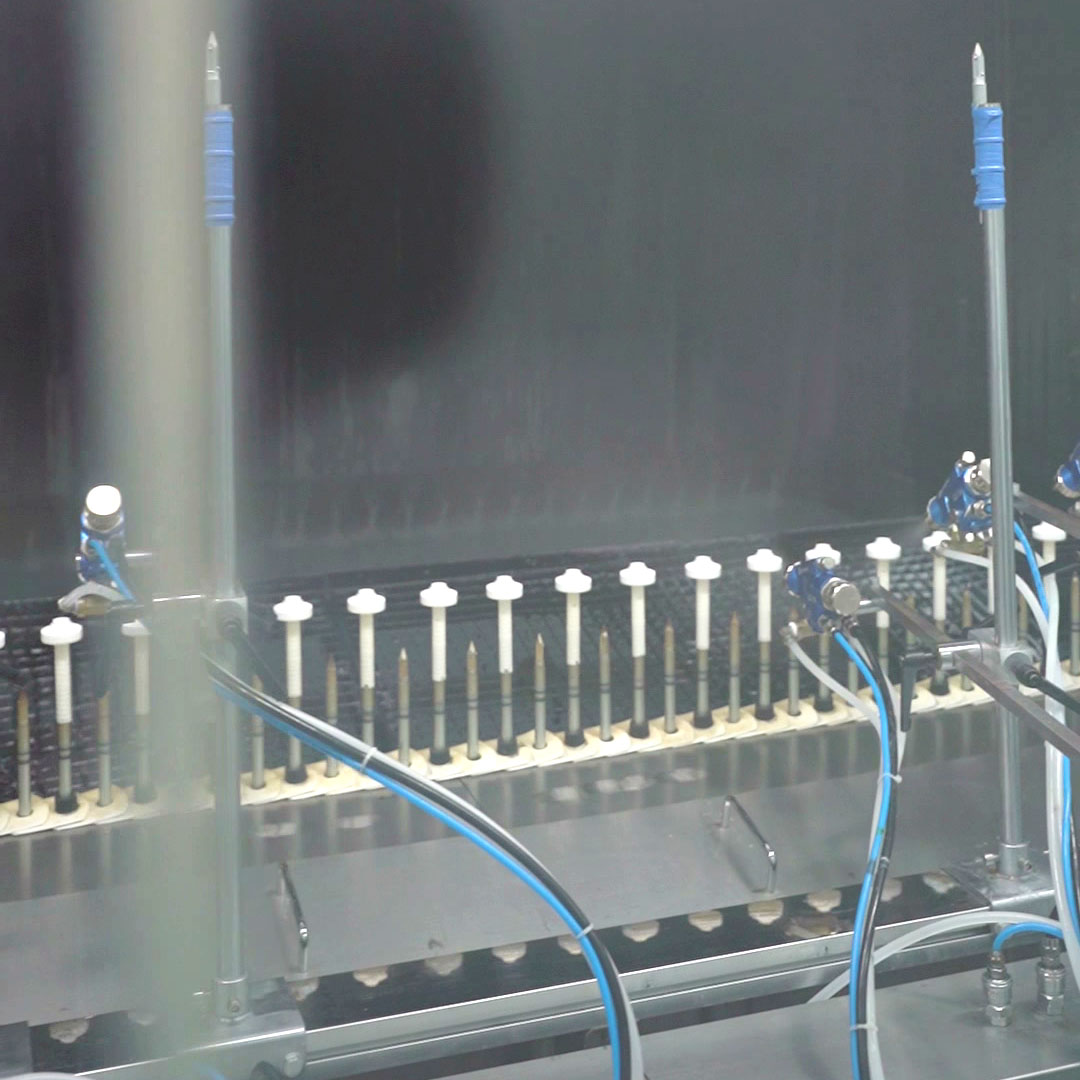

This integration solution links the spray booth's unloading zone to the PVD machine's load lock via a shared conveyor system or robotic transfer. After UV curing, parts undergo a brief cooling period (30–60 seconds) to stabilize temperature before entering the vacuum environment. A PLC tracks each part's ID, automatically switching PVD recipes based on the specific part type, ensuring process consistency.

5 Critical Considerations for Your Solution:
1. Exhaust Balance: Prevent pressure fluctuations in the PVD chamber.
2. Load Locks: Act as airlocks to maintain vacuum integrity.
3. Conveyor Sync: Align pitch and speed across all integrated zones.
4. Cooling Duration: Prevent thermal off-gassing in the vacuum.
5. Communication: Standardize protocols (e.g., Profinet, Modbus) between systems.

Geetech (Dongguan Geetech Electrical-Mechanical Equipment Co., Ltd.) specializes in this integration, wiring spray booths, UV tunnels, and PVD chambers to a single Siemens or OMRON PLC. This unified control architecture eliminates communication gaps and allows for centralized monitoring of booth temperature, UV dose, and chamber pressure.

Why Choose Geetech Solution:
1. Single HMI interface controls the entire spray-to-PVD workflow.
2. Custom load lock designs minimize cycle time between processes.
3. Robust mechanical interfaces prevent part misalignment during transfer.
4. Integrated safety interlocks protect operators and equipment.
5. Turnkey project management from design to on-site commissioning.
